Plex Label Designer

Design Plex customer label formats in your browser, preview exactly what the printer will produce, and save straight back to Plex.

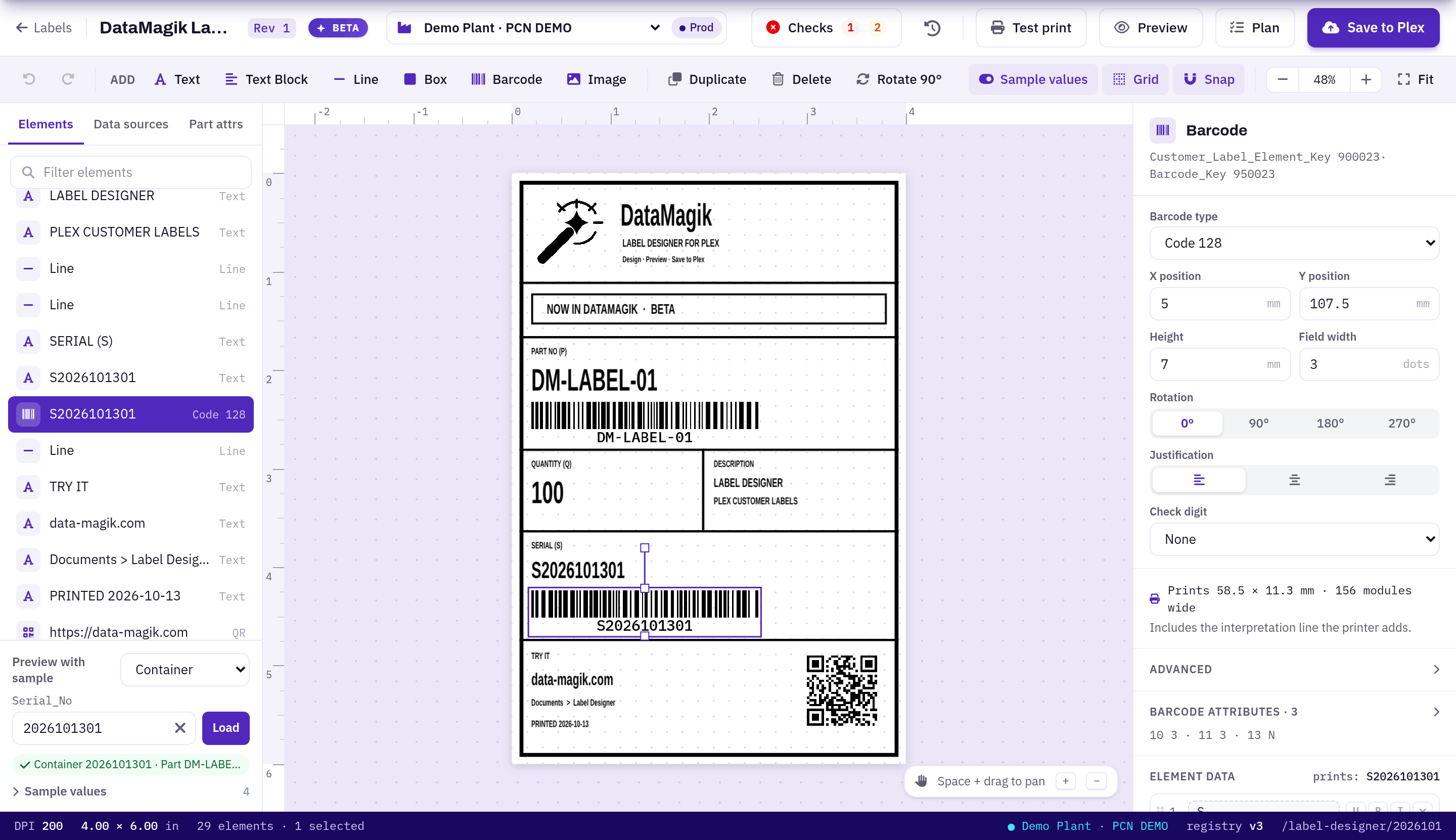

Open Documents → Label Designer. The Label Designer edits the customer label formats stored in your Plex PCN — container, master unit, gage, location, supply and part labels. Your labels stay in Plex: DataMagik reads them, lets you edit them visually, and writes your changes back through Plex's own data sources.

What you can do

• Design visually — text, text blocks, lines, boxes, barcodes (Code 39, Code 128, ITF, UPC-A, PDF417, QR, Data Matrix) and images, with rulers, a grid, snapping, rotation and undo.
• Bind to Plex data — drag a column from any label data source onto an element, or search every data source for a field by name.
• Preview with real data — load a real container or other record from Plex, fill in any other values yourself, and see them on the canvas.
• Catch problems before printing — pre-save checks flag elements off the label, overlaps, values that will be cut off, barcodes too thin to scan and fields that no longer exist.
• See the exact output — a pixel-accurate ZPL preview, a side-by-side compare with Plex's own compiled label, and test prints to your Zebra printers.
• Save safely to Plex — every save shows the exact Plex calls it will make, keeps a revision history you can restore, and is recorded in the DataMagik change log.

Guides

• Setting up the Label Designer — PCN connections, credentials and data source access.
• Designing labels — the editor, elements, data and sample values.
• Previewing, printing and saving to Plex — checks, preview, test print, saving and revisions.
• Administration and AI access — the data source registry and the MCP tools.

Access: The Label Designer is a licensed feature (Beta). It needs the Label Designer licence for your company and the DataMagik - Builder permission.
